ArcGIS Pro 3.0 for Windows: Manual Installation

You are here:
< All Topics

Installing Microsoft Windows Desktop Runtime

1. Installer
Download the Microsoft Windows Desktop Runtime 6.0.5 (x64) installer.

Microsoft Windows Desktop Runtime – Installer

2. Windows Desktop Runtime
Close all running applications, open the installer, and click Install.

Microsoft Windows Desktop Runtime

3. Installation was successful
Upon successful installation, click Close.

Microsoft Windows Desktop Runtime – Installation was successful

Installing ArcGIS Pro

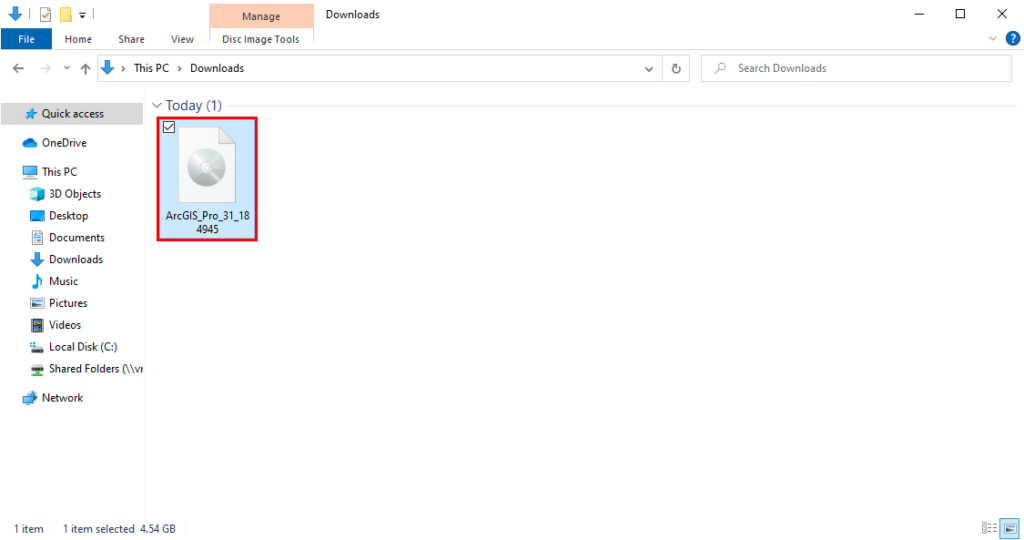

1. Installer ISO
Download the installer ISO, then open it with Windows Explorer.

ArcGIS Pro for Windows – Installer ISO

2. Installer
Close all running applications, then open the installer named ArcGISPro_303_184244.exe. Do not install the other components unless specifically required.

ArcGIS Pro for Windows – Installer

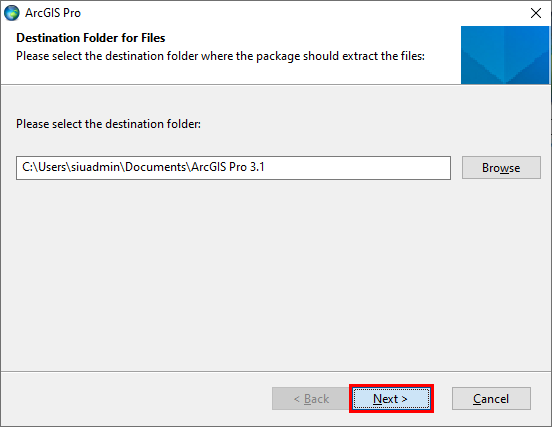

3. Destination Folder for Files
Click Next.

ArcGIS Pro for Windows – Destination Folder for Files

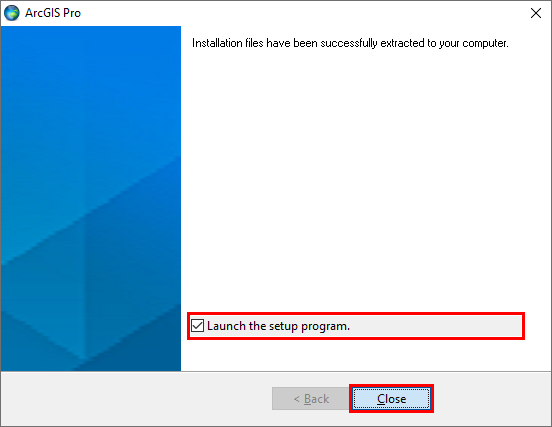

4. Installation files have been successfully extracted to your computer
Check Launch the setup program, then click Close.

ArcGIS Pro for Windows – Installation files have been successfully extracted to your computer

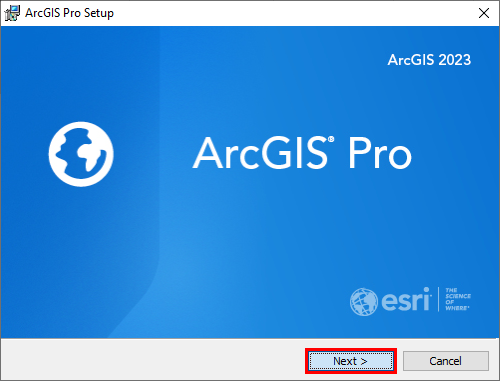

5. ArcGIS Pro Setup splash screen
Click Next.

ArcGIS Pro for Windows – Setup splash screen

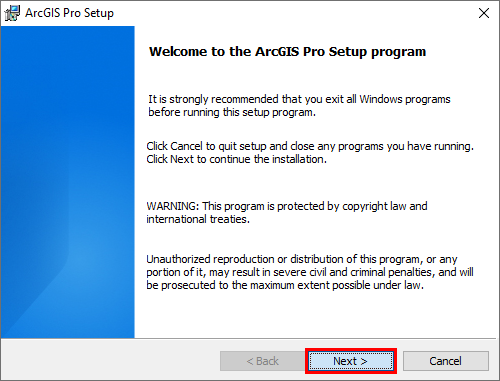

6. Welcome to the ArcGIS Pro Setup program
Click Next.

ArcGIS Pro for Windows – Welcome to the ArcGIS Pro Setup program

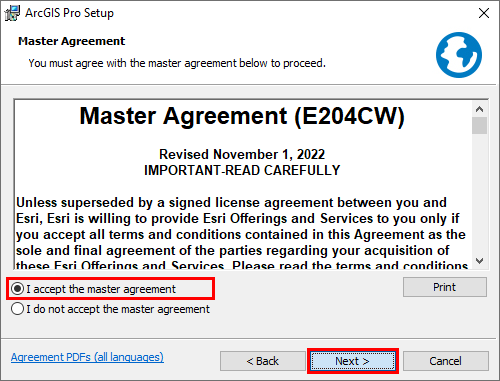

7. Master Agreement
Select I accept the master agreement, then click Next.

ArcGIS Pro for Windows – Master Agreement

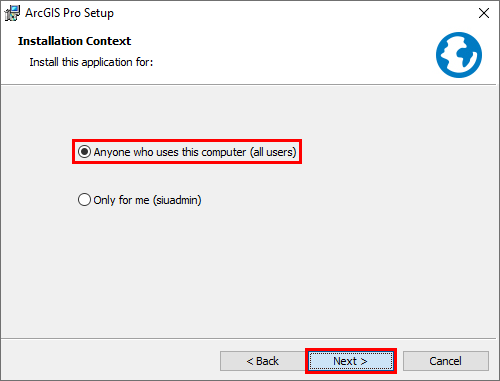

8. Installation Context
Select Anyone who uses this computer (all users), then click Next.

ArcGIS Pro for Windows – Installation Context

9. Select Features
Click Next.

ArcGIS Pro for Windows – Select Features

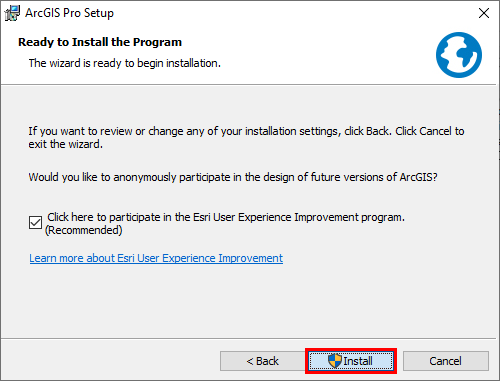

10. Ready to Install the Program
Click Install.

ArcGIS Pro for Windows – Ready to Install the Program

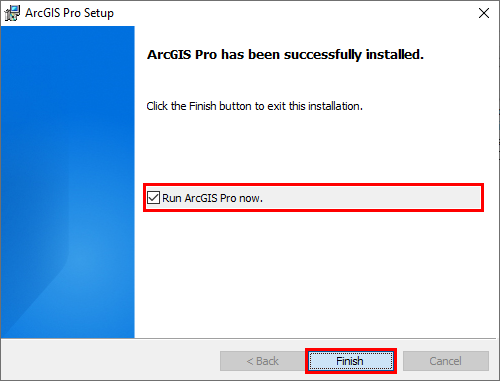

11. ArcGIS Pro has been successfully installed
Check Run ArcGIS Pro now, then click Finish.

ArcGIS Pro for Windows – ArcGIS Pro has been successfully installed

ArcGIS Sign In (Required)

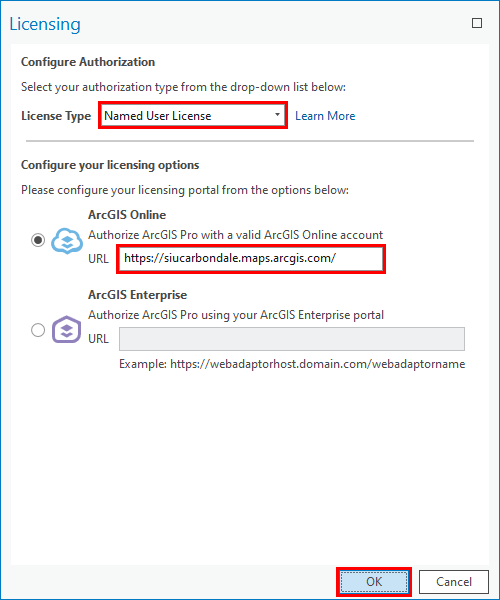

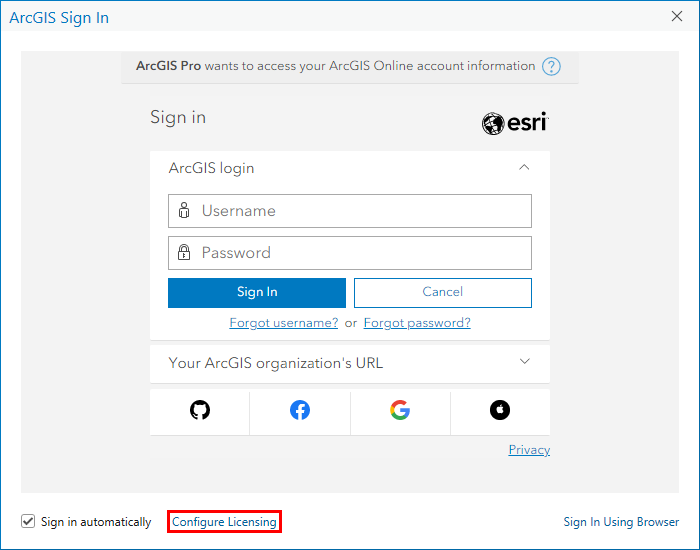

1. ArcGIS Sign In – Configure Licensing
Open the ArcGIS Pro app for the first time, then configure licensing:

  • click Configure Licensing
  • select License Type – Named User License
  • enter ArcGIS Online Server URL – https://siucarbondale.maps.arcgis.com/
  • click OK
ArcGIS Pro for Windows – Configure Licensing

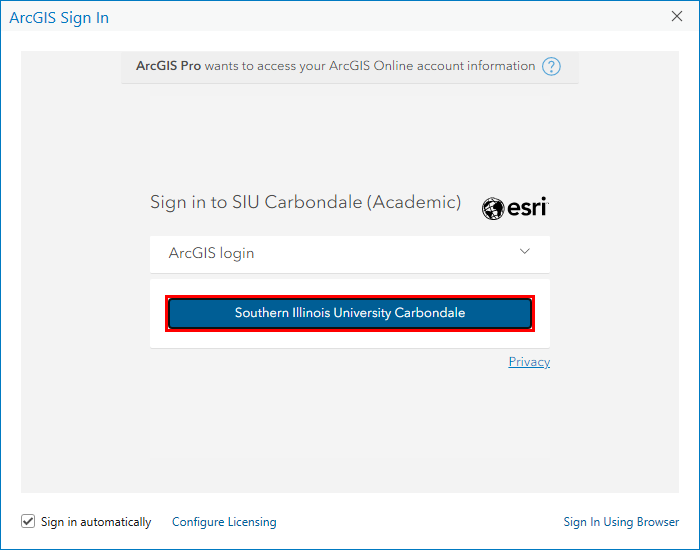

2. ArcGIS Sign In
Open the ArcGIS Pro app, click Southern Illinois University Carbondale, and sign in with your @siu.edu email account.

ArcGIS Pro for Windows – ArcGIS Sign In

Troubleshooting

1. Corrupted Installer ISO: If the installer ISO is corrupted and does not open, then download again with a different web browser. To verify successful download, compare the cryptographic hash value.

ArcGIS Pro 3.0.3 for Windows (SHA-256):
cc42e10ae1a2fb6fa89b9bccdef2d3ff1980d32021bdf06e66ae9277e4f5b449

ArcGIS Pro 3.0 for Windows (SHA-256):
b12f612e67613fba298a7eff867b3120ef5750a3f0d794ca29de7d42447e3d6d

2. Third-Party Archive Utilities: Open the installer ISO with Windows Explorer. If necessary, temporarily disable or uninstall third-party archive utilities like 7-Zip, WinRAR, and WinZip.

3. Microsoft Window Desktop Runtime
ArcGIS Pro 3.0 requires Microsoft Windows Desktop Runtime 6.0.5 (x64) or later.

ArcGIS Pro requires Microsoft .NET Desktop Runtime (x64)
